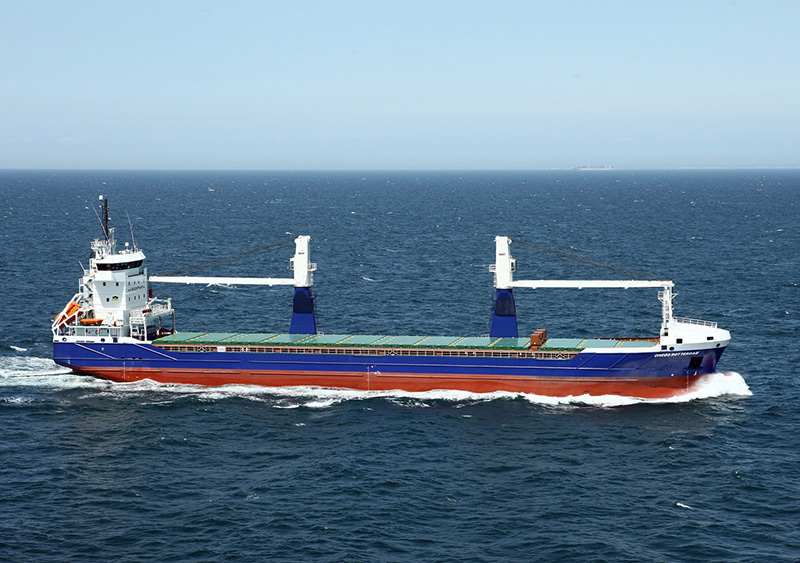

Name Onego Rotterdam
Flag
Antigua and Barbuda
Callsign
V2QO7
Class
Lloyd's Register
Type
Multi Purpose Singledeck/Tweendeck Box-shaped Open-hatch
GT / NT
5751 / 3048
DWAT Summer
8270 mt
DWCC Summer (abt.)
7400 mt
Summer Draft
7.213 m
LOA
118.14 m
Beam
16.14 m
Moulded depth
8.80 m
ME / Bowthruster
2995 kW / 460 kW
IMO Number
9631345
Type of hatchcovers
Pontoon McStack type operated by Gantry crane
Gear
2 x 60 mt pot side - comb 120 mt less spreader/slings, 24mt in grab mode
IFO / MDO capacity
472 / 65 cbm
Tanktop strength
Tanktop 17 mt/square meter
Tweendeck 3 mt/square meter
Hatches 2.00 mt/square meter
Cargo hold ventilation
10 airchanges per hour
P&I Club
Raets Marine
Speed
abt 13 kts
Ice Class
Swedish / Finnish 1A

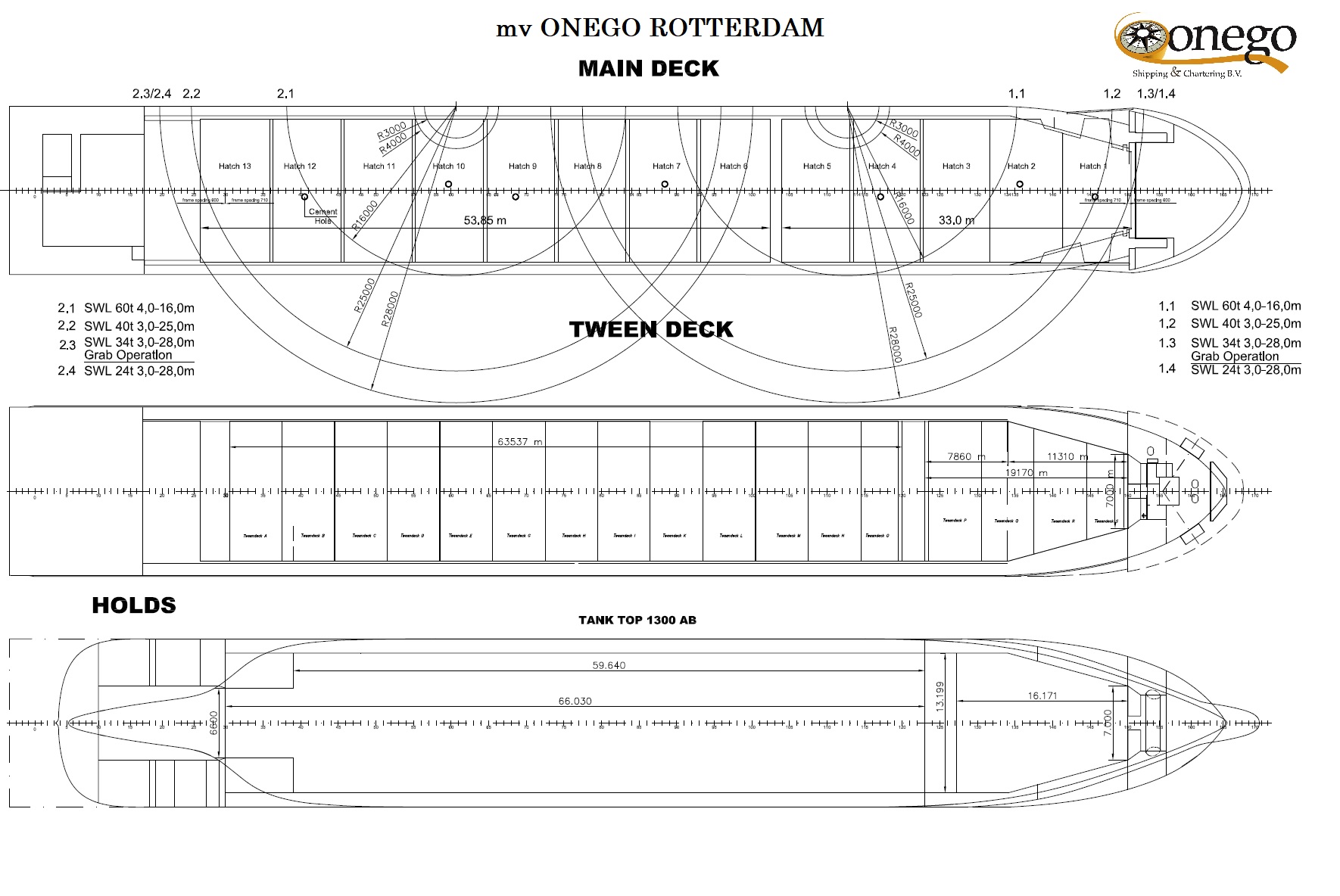

Hatch Sizes
No. 1
19.17
13.20
No. 2
63.90
13.20
Hold dimensions
L
B
H
Grain
Bale
No. 1
19.17
13.20
10.05
77340
77340
No. 2
63.90
13.20
10.05
303880
303880
Total capacity cbm
10795
10795
Total capacity cbft
381220 less twd pontoons
381220 less twd pontoons

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
