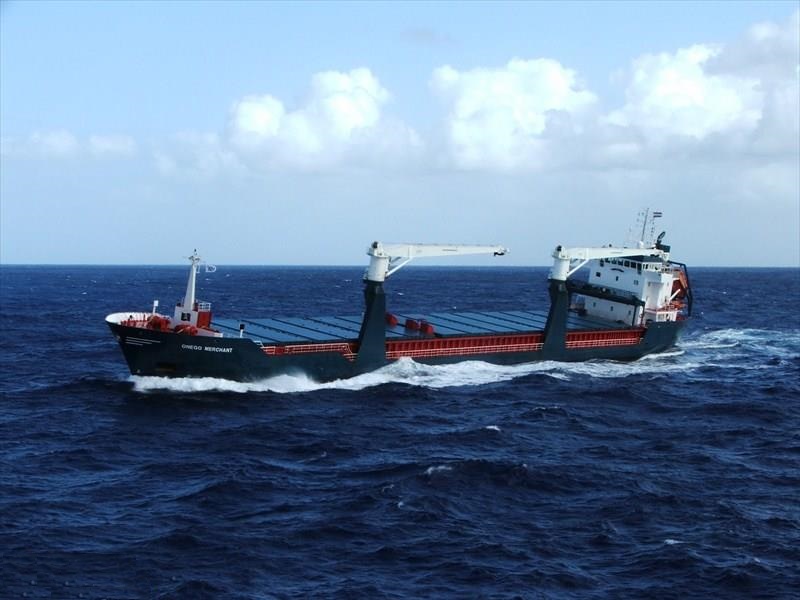

Name Onego Merchant
Flag
Portugal
Callsign
DHPM2
Class
Bureau Veritas
Type
Box-shaped, double-skinned open-hatch single deck
GT / NT
6301 / 3582
DWAT Summer
8800 mt
DWCC Summer (abt.)
abt.8100 mt
Summer Draft
7.49 m
LOA
132.50 m
Beam
15.87 m
Moulded depth
9.65 m
ME / Bowthruster
3849 / 500 Kw
IMO Number
9238363
Type of hatchcovers
pontoons
Gear
2 Cranes x 40 mt - COMB 80 MT
IFO / MDO capacity
550 / 75
Tanktop strength
15 mt per square meter
4 bulkheads can be used as tweendeck: 3.5 mt/square meter
Cargo hold ventilation
6 airchanges per hour
P&I Club
NNPC
Speed
abt 12 knts
Ice Class
none

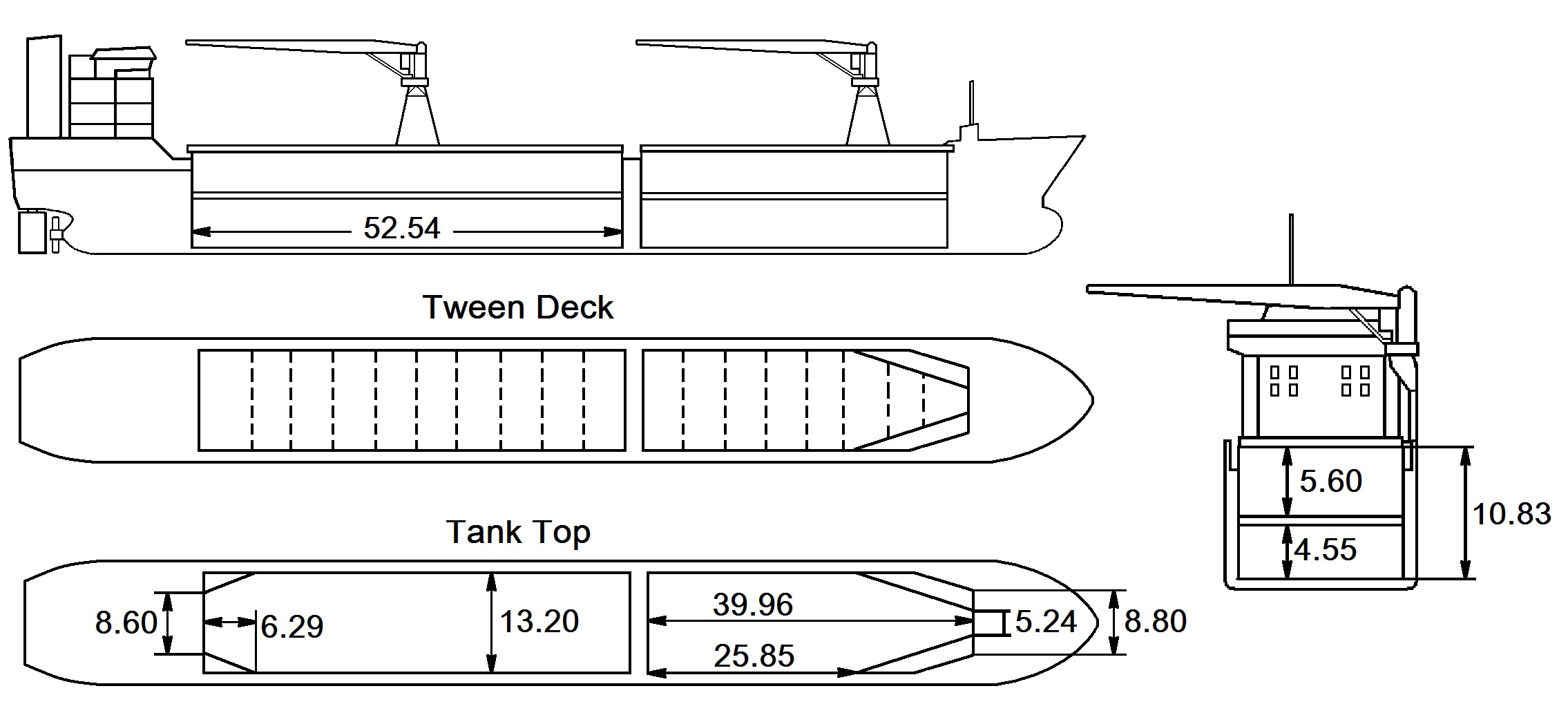

Hatch Sizes
No. 1
39.96
13.20
No. 2
52.54
13.20
Hold dimensions
L
B
H
Grain
Bale
No. 1
39.96
13.20
10.83
5346
5346
No. 2
52.54
13.20
10.83
7468
7468
Total capacity cbm
12.814
12.814
Total capacity cbft
452.528
452.528

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
