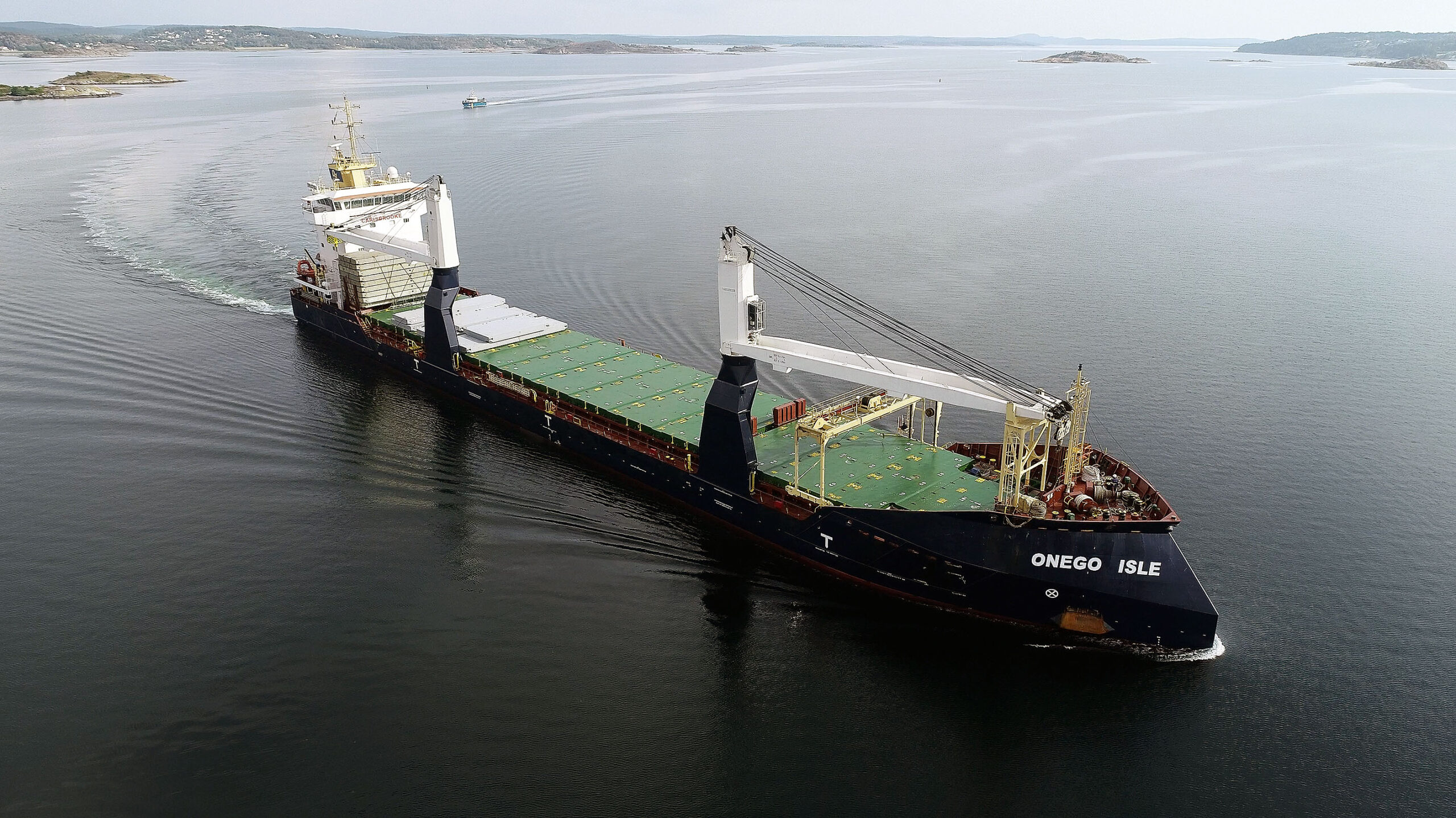

Name Onego Isle
Flag
Antigua and Barbuda
Callsign
2GAS8
Class
BV
Type
Multi Purpose Singledeck/Tweendeck Box-shaped Open-hatch
GT / NT
7227 / 3495
DWAT Summer
11183 mt
DWCC Summer (abt.)
10000 mt
Summer Draft
8.471 m
LOA
123.95
Beam
17.40
Moulded depth
11.40
ME / Bowthruster
2999 kW / 400 kW
IMO Number
9626156
Gear
2 x 80mt Starboard side, combinable upto 150mt
IFO / MDO capacity
252 cbm / 222 cbm
Tanktop strength
Tanktop 18 mt per sqm
Tweendeck 3.5 mt per sqm
Hatchcover 2.50 mt per sqm
Cargo hold ventilation
12 aircharnges per hour
P&I Club
Steamship Mutual
Speed
abt 10.5 kts
Ice Class
Swedish/Finnish 1A
Hatch Sizes
No. 1
25.20
13.80
No. 2
63.70
13.80
Hold dimensions
L
B
H
Grain
Bale
No. 1
25.20
13.80
11.30
3234 cbm
3234 cbm
No. 2
63.70
13.80
11.30
9420 cbm
9420 cbm
Total capacity cbm
12655 excl twd
11960
Total capacity cbft
446900 excl twd
422400

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
