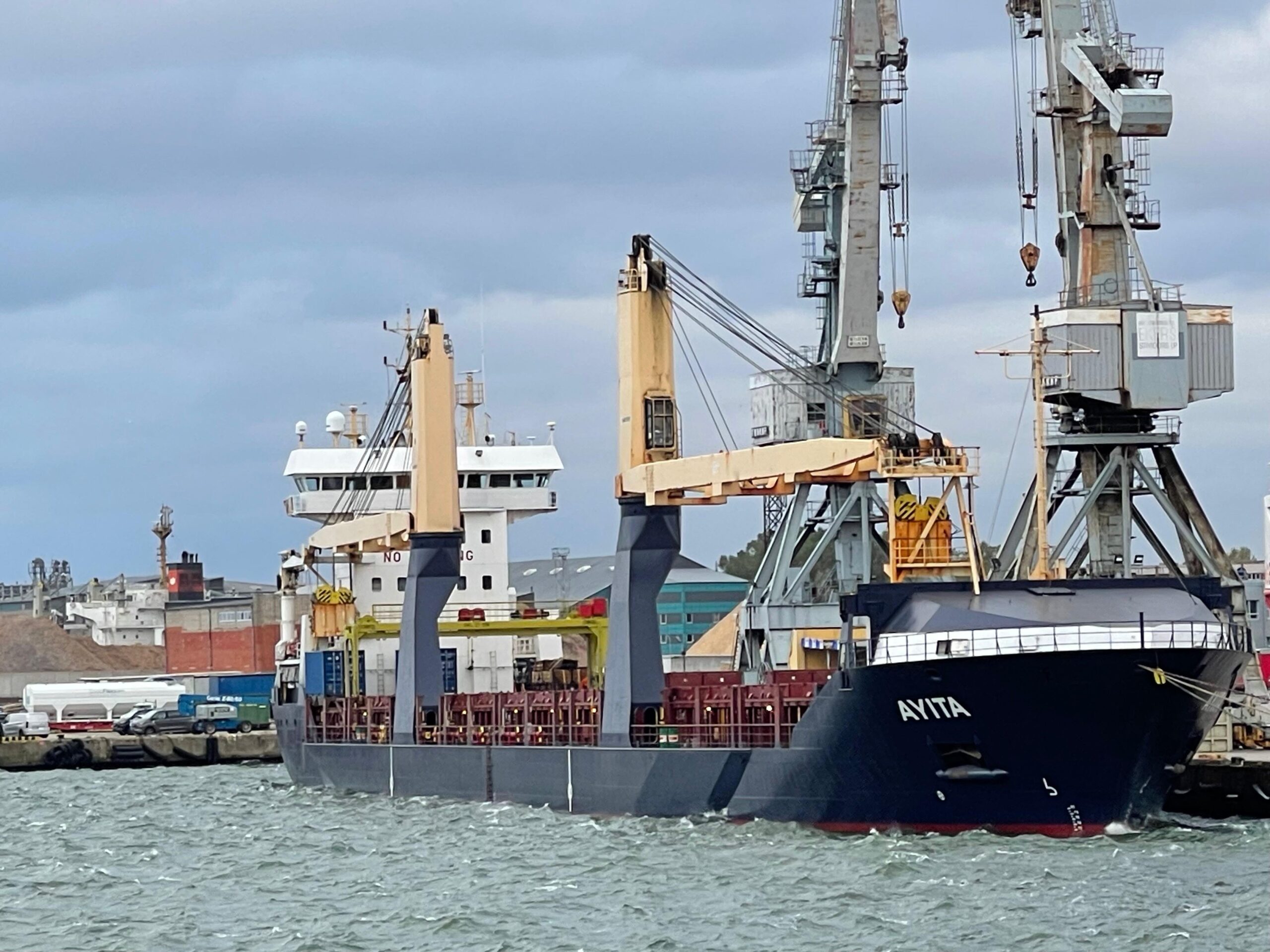

Name Ayita
Flag
Antigua and Barbuda
Callsign
V2FU5
Class
Germanischer Lloyd
Type
Multi Purpose Singledeck/Tweendeck Box-shaped Open-hatch
GT / NT
7813 / 3856
DWAT Summer
10385 mt
DWCC Summer (abt.)
9500 mt
Summer Draft
7.35
LOA
145.63
Beam
18.25
Moulded depth
10.30
ME / Bowthruster
4320 kW / 495 kW
IMO Number
9290048
Type of hatchcovers
Pontoon
Gear
2 x 80mt starboard side cranes, combinable upto 150 mt
IFO / MDO capacity
510mt / 110 mt
Tanktop strength
Tanktop 20 mt per sqm
Tweendeck 3.5 mt per sqm
Hatchcover 1.75 mt per sqm
P&I Club
Hydor
Speed
abt 12.5 kts
Ice Class
Swedish/Finnish 1A
Hatch Sizes
No. 1
38.95
13.15
No. 2
65.41
13.15
Hold dimensions
L
B
H
Grain
Bale
No. 1
38.95
13.15
11.05
No. 2
65.41
13.15
11.05
Total capacity cbm
14878
14878
Total capacity cbft
525411
525411

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
