Name Onego Maas
Flag
Antigua and Barbuda
Callsign
V2QF8
Class
Bureau Veritas
Type
Multi Purpose Singledeck/Tweendeck Box-shaped Open-hatch
GT / NT
8059/ 3909
DWAT Summer
10872 mt
DWCC Summer (abt.)
9700 mt
Summer Draft
7.40 m
LOA
145.63
Beam
18.25
Moulded depth
10.30
ME / Bowthruster
4320 kW / 650 kW
IMO Number
9535618
Gear
2 x 80mt Starboard side, combinable upto 150mt
IFO / MDO capacity
440mt / 115mt
Tanktop strength
Tanktop 18-20 mt per sqm
Tweendeck 3.5 mt per sqm
Hatchcover 1.75 mt per sqm
Cargo hold ventilation
6 aircharnges per hour
P&I Club
Skuld
Speed
abt 12.5 kts
Ice Class
Swedish/Finnish 1A

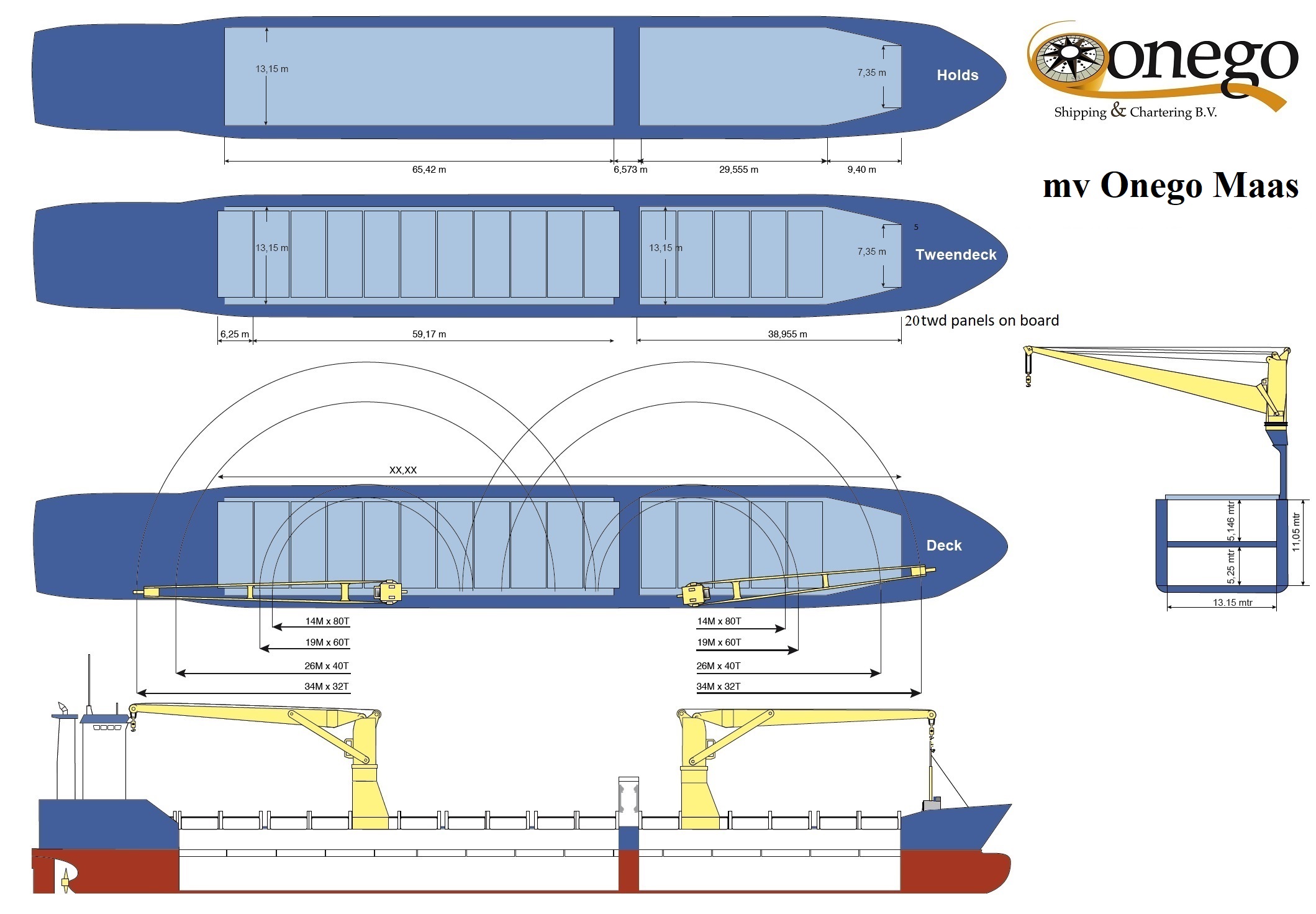

Hatch Sizes
No. 1
38.95
13.15
No. 2
59.45
13.15
Hold dimensions
L
B
H
Grain
Bale
No. 1
38.95
13.15
11.05
189569
189569
No. 2
65.41
13.15
11.05
333336
333336
Total capacity cbm
14806
14806
Total capacity cbft
522905
522905

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
