Name Onego Deusto
Flag
Dutch
Callsign
PCSO
Class
DNV GL
Type
Multi Purpose Singledeck/Tweendeck Box-shaped Open-hatch
GT / NT
6312 / 3613
DWAT Summer
9821 mt
DWCC Summer (abt.)
8600 mt
Summer Draft
7.73
LOA
132.20
Beam
15.87
Moulded depth
9.65
ME / Bowthruster
3840kW / 500kW
IMO Number
9399129
Type of hatchcovers
Pontoon - operated by gantry cranes
Gear
2x40mt port side, combinable
IFO / MDO capacity
484 cbm / 135 cbm
Tanktop strength
15 mt/sqm; tweendeck 3.5 mt/sqm; deck 1.75 mt/sqm
Cargo hold ventilation
6 air changes per hour
P&I Club
NNPC
Speed
12 kts
Ice Class
none

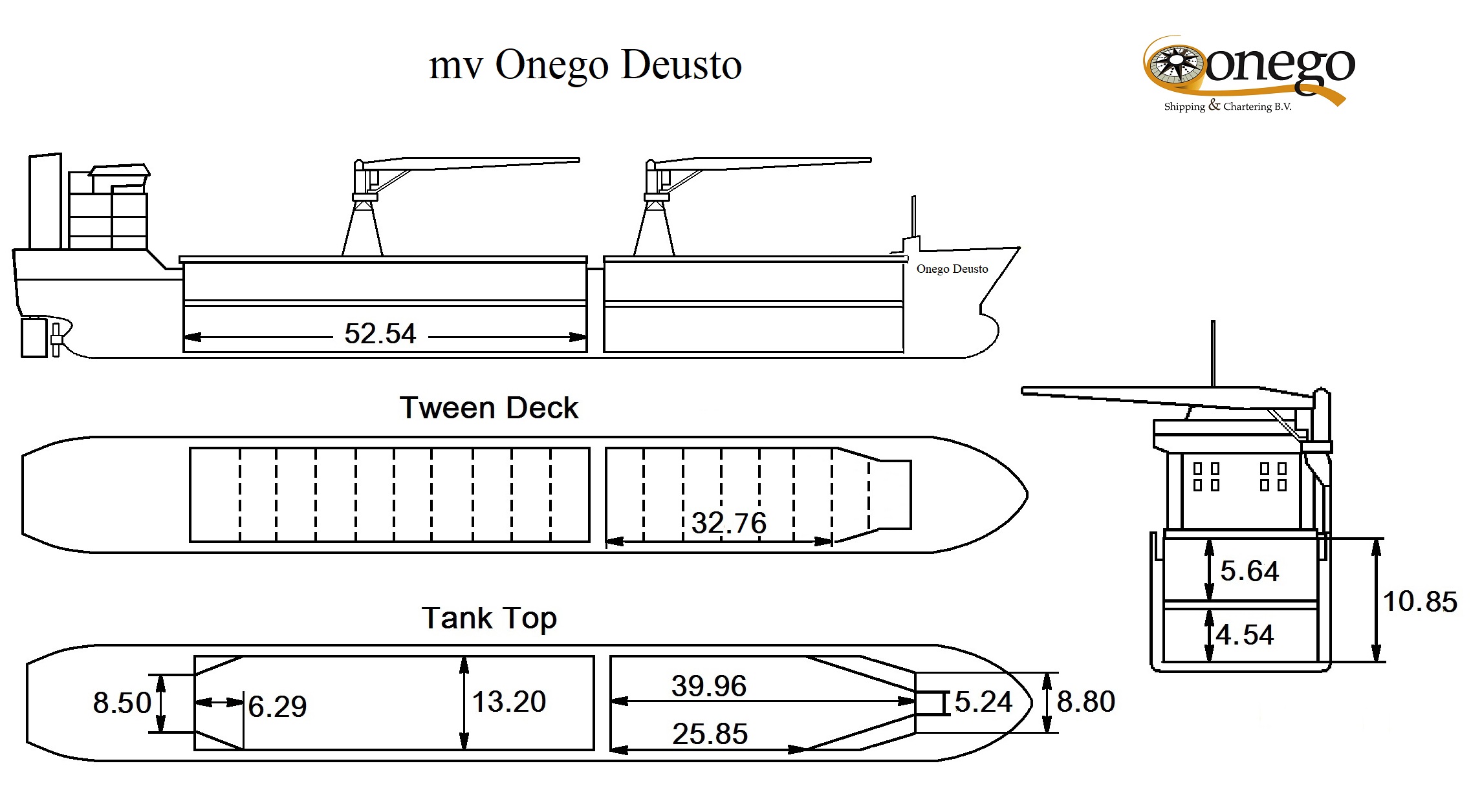

Hatch Sizes
No. 1
39.96
13.2
No. 2
52.54
13.2
Hold dimensions
L
B
H
Grain
Bale
No. 1
39.96
13.2
10.85
189076
No. 2
52.54
13.2
10.85
263732
Total capacity cbm
12822 exl tweendeck
12200
Total capacity cbft
452808 exl tweendeck
430840

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
