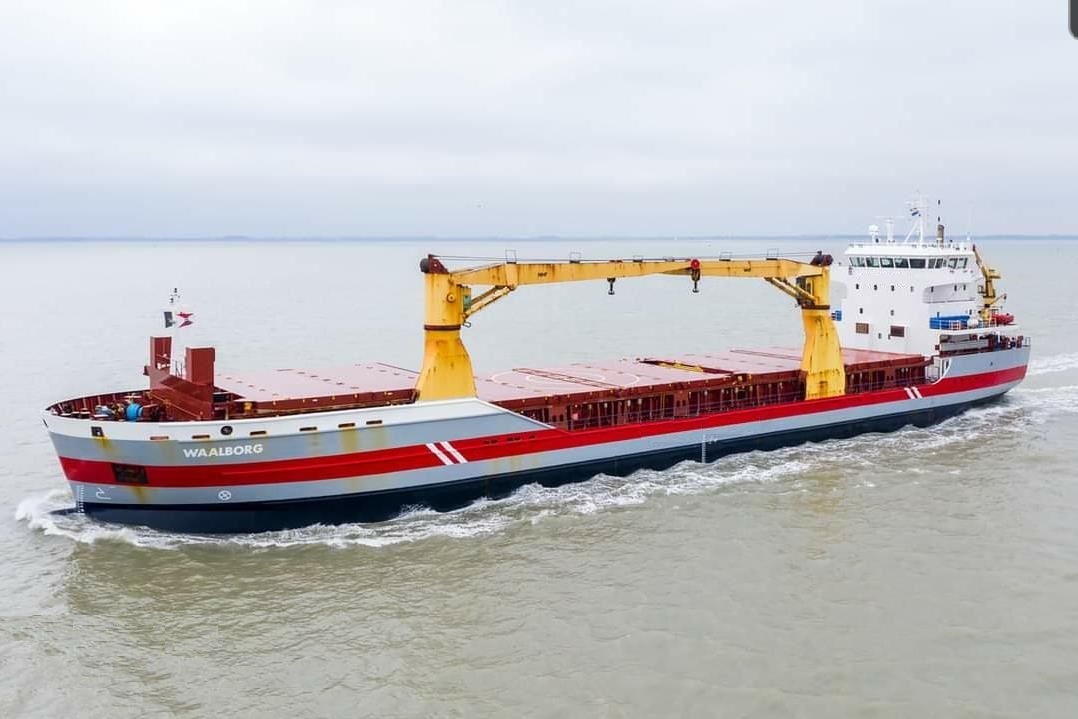

Name Waalborg
Flag
Dutch
Callsign
PBET
Class
Bureau Veritas
Type
Box-shaped, double-skinned open-hatch single deck
GT / NT
6668 / 3625
DWAT Summer
9685 mt
DWCC Summer (abt.)
9366 mt
Summer Draft
8.227 m
LOA
106.99 m
Beam
18.20 m
Moulded depth
10.50 m
ME / Bowthruster
3849 / 450 Kw
IMO Number
9505546
Type of hatchcovers
pontoons
Gear
2 Cranes x 60 mt - COMB 110 MT
IFO / MDO capacity
294mt / 240mt
Tanktop strength
14 mt per square meter
Cargo hold ventilation
6 airchanges per hour
P&I Club
North of England
Speed
abt 11 kts
Ice Class
1A Swedish/Finnish

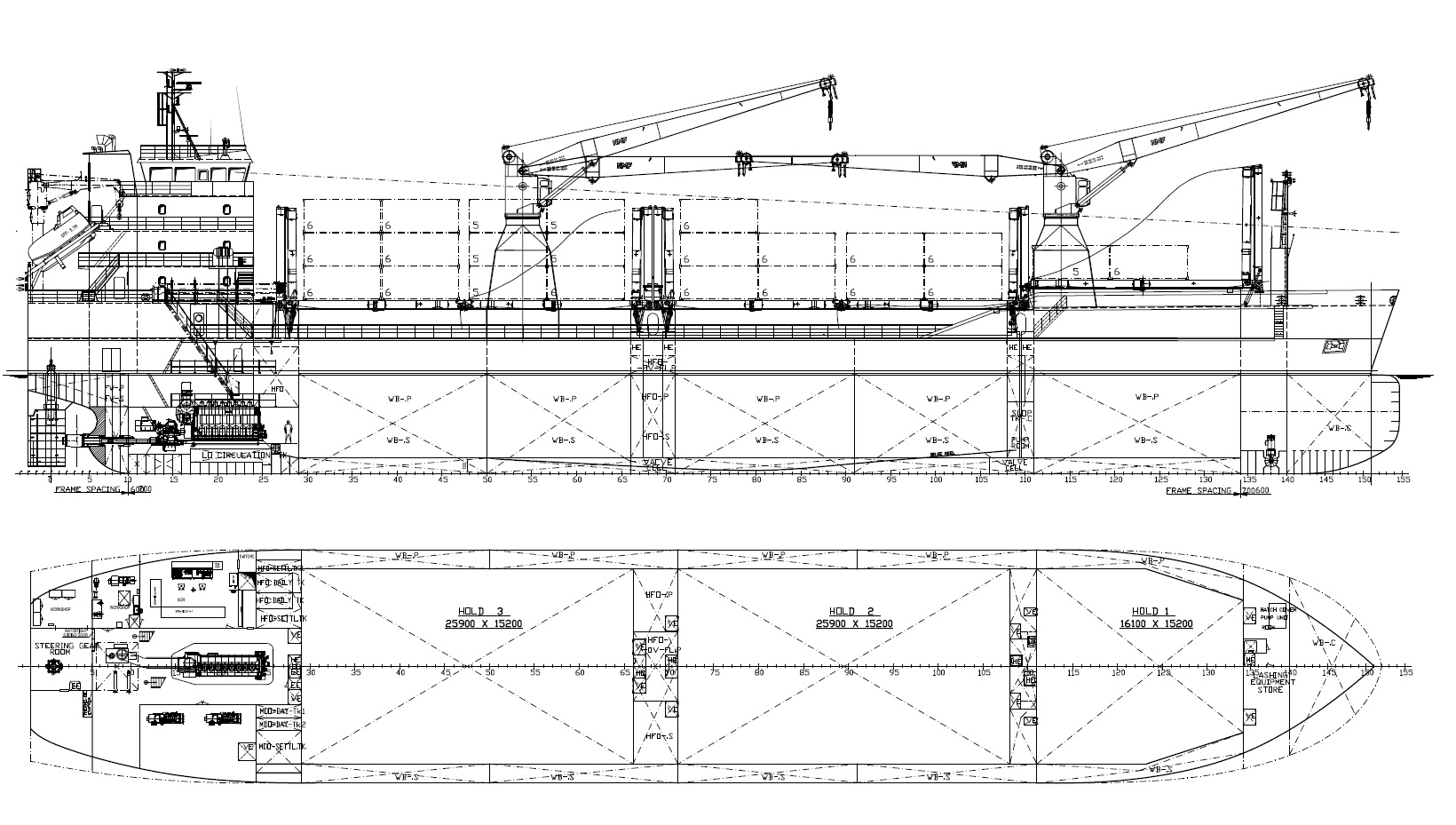

Hatch Sizes
No. 1
16.10
15.50
No. 2
25.90
15.20
No. 3
25.90
15.20
Hold dimensions
L
B
H
Grain
Bale
No. 1
16.10
15.20
13.20
105510
105510
No. 2
25.90
15.20
11.60
161217
161217
No. 3
25.90
15.50
11.60
161217
161217
Total capacity cbft
427944
427.944

Disclaimer

The vessel specifications contained in this data sheet have been compiled to the best of Onego Shipping and Chartering B.V. knowledge. However, all specifications contained in this data sheet only describe “about” data and therefore cannot be considered as guaranteed specification of the respective vessel. Speed and consumption figures may vary from the data contained in this data sheet and are dependent on weather and sea conditions, the loaded cargo and the quality of the bunker on board. The loading and lifting capacities of the vessels are subject to the vessel’s stability, trim, permissible weights, regulations of visibility and might depend on the cargo and/or ballast on board. None of the details set out in this data sheet shall be part of charterparties or other agreements between Onego Shipping and Chartering B.V., including its affiliates, and any third party.
